Reset-Plug-In-Object-Classes
Reset Plug-in Object Classes
Menu Command
Version
1.1.2 - 08/10/2024
This plug-in is written in Vectorscript (Pascal) and can be used in any version of Vectorworks 2019 or newer.
Description
Opens a dialog box allowing User to change all plug-in objects of matching types to a given class
Instructions
- Run menu command
- Select desired Plug-in Object type to alter
- Check Change Class checkbox
- Select new Class from dropdown
- If desired, check Set Attributes By Class checkbox to also set all attributes for affected PIO objects to be By Class
- Press OK button to force desired Plug-in Objects to use newly chosen Classes

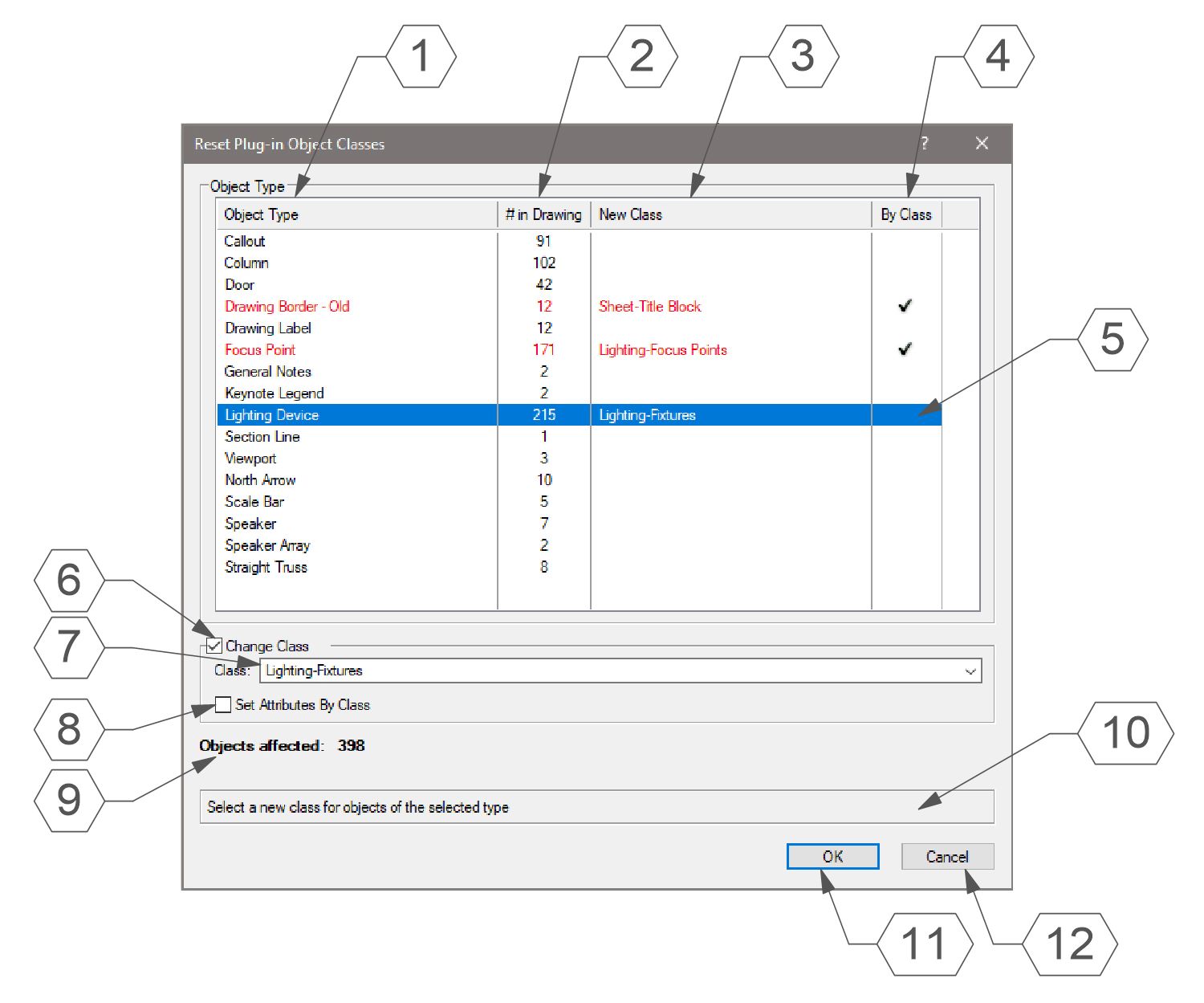

Dialog Box Explanation
- Column listing all Plug-in Object (PIO) types found in the active drawing.
- Column listing count of PIOs found in the active drawing.
- Column listing the new Class chosen for the PIO. PIOs with new Classes will be listed in Red.
- Column showing PIOs with Set Attributes By Class selected.
- The currently selected PIO will by highlighted in the List Browser. Multiple PIOs may be selected at a time.
- Checking the Change Class checkbox will set the PIO for Class replacement. Unchecking the box will clear the New Class and By Class columns for the selected PIOs.
- Class drop-down menu. Use this to select the new Class for the selected PIOs.
- Checking the Set Attributes By Class checkbox will set all Attributes for affected PIOs to be By Class.
- Counter displaying number of affected objects in the active drawing.
- Help Box, mousing over any dialog box element will display an explanation here.
- Pressing the OK button will close the dialog box and change the Class of all PIOs with a chosen new Class.
- Pressing the Cancel button will close the dialog box without affecting any PIOs.
Installation Instructions
There are two methods of installation, direct download of the plug-in or through the JNC Tools Free Manager plug-in.
Direct Download:
- Download source plug-in file
- Place downloaded file inside the Vectorworks User Folder within the Plug-ins directory
- Restart Vectorworks
JNC Tools Free Manager
- Run the JNC Tools Free Manager menu command
- Select the Reset Plug-in Obj Classes command
- Press the Install / Update button
- Press Close to close the dialog box
- Restart Vectorworks
Adding the Plug-in to your Workspace
- Open the Workspace Editor by going to Tools - Workspaces - Edit Current Workspace
- Select the Menus tab
- In the box on the left, find and expand the JNC category
- In the box on the right, find a suitable menu to place the command in, such as Tools or Modify
- Click and drag the Reset Plug-in Object Classes command from the box on the left to the desired menu location in the box on the right
- Click OK to close the editor
Localization Instructions
The plug-in can be localized to your native language without having access to the source code. This can be achieved by following the instructions below:
- Open the Plug-in Manager by going to Tools - Plug-ins - Plug-in Manager
- Select the Third-party Plug-ins tab
- Select the Reset Plug-in Obj Classes command
- Click the Customize button
- Select the Strings tab
- Double-click a category, such as Dialog Strings
- Select a string to edit and press the Edit button
- Write a new string and press the OK button until you are back to the Plug-in Manager
The categories for this plug-in are as follows:
- 3000 - Dialog Strings: These strings are used in the dialog box and can all freely be changed
- 4000 - Dialog Help Strings: These strings are used in the Help Box at the bottom of the dialog box and can all be freely changed
- 5000 - Misc Strings: These strings serve multiple purposes in the code, only string 5000 should be changed
Release Notes
| Date | Version | Note |
|---|---|---|
| 12/07/2023 | 1.0.0 | Initial release |
| 12/08/2023 | 1.0.1 | Added ability to set objects By Class |
| 03/22/2024 | 1.1.1 | Fixed bug with Callout objects not taking By Class |
| 08/10/2024 | 1.1.2 | Fixed bug preventing User from unchecking Change Class checkbox |
Known Bugs
No Known Bugs
Feature Requests
No current Feature Requests
